The MGF and MG TF represent a fundamentally different electrical proposition to the earlier MGs in the MGOC Spares catalogue. There are no dynamo-to-alternator conversions, no positive-to-negative earth changes, no contact breaker points, and no mechanical advance distributors. The entire system is 12-volt negative earth, with an 85A alternator maintaining a stable charging output across the range, fully electronic ignition integrated into the MEMS engine management, and a level of complexity, immobiliser, airbags, electric windows, EPAS, ABS on most cars, that places these cars firmly in the modern era rather than the traditional classic.
The EPAS Battery, Different From Non-EPAS and Important to Get Right
Nearly every MGF and all MG TFs were fitted with NSK-built Electric Power Assisted Steering, and cars with EPAS use a much higher-capacity battery than the small number of early non-EPAS MGFs. The correct EPAS battery has around 20 per cent more reserve capacity, nearly 500 amps, and this specification should not be substituted. The reason is specific to the EPAS system: a fully charged battery can be drained within about 25 miles of driving in dry daylight conditions if the alternator output fails, because the electric steering pump continues drawing heavy current from the battery with no dashboard warning to the driver in daylight (unlike a night drive where dimming headlamps signal the charging failure). The correct battery specification and a healthy alternator are therefore tightly linked on these cars.
Two Major Electrical Production Breakpoints
Ordering electrical parts for a specific car is straightforward once two primary breakpoints are identified. The Mk1/Mk2 transition at VIN XD511059 changed the instrument cluster, introduced the MY2000 interior, and replaced the cable-driven speedometer with an electronic speed transducer. The MEMS transition at VIN 1D535577 changed the engine management from MEMS 1.9/2J to MEMS 3 with EOBD compliance, twin oxygen sensors, and coil-on-plug ignition, affecting the entire engine bay wiring loom and sensor suite. Further breakpoints apply to specific systems (MGF-to-TF loom at 4D600101, alarm ECU at 4D620549, airbag ECU at MY2005 VIN 5D639631) and are covered on the child pages for each system.
Which Child Page to Choose

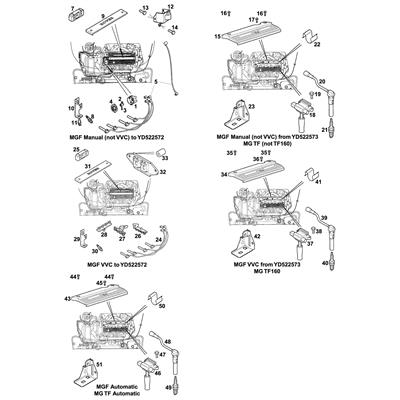

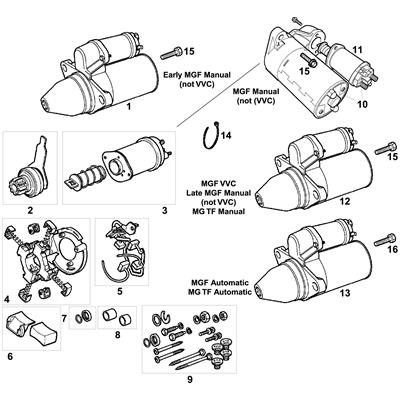

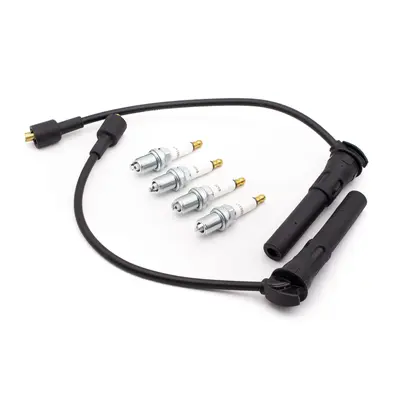

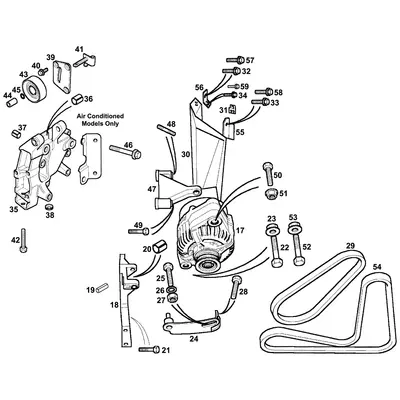

Alternator & Fixings covers the 85A alternator, mounting brackets, and drive belt. Starter Motor covers the bellhousing-mounted starter and exchange units. Ignition Service Kits bundles plugs, leads, coil packs, and associated service items in matched sets. Ignition Components & Fixings covers the same items individually along with distributors, rotor arms, caps, and HT leads for the early distributor-equipped cars and coil-on-plug items for MEMS 3 cars.

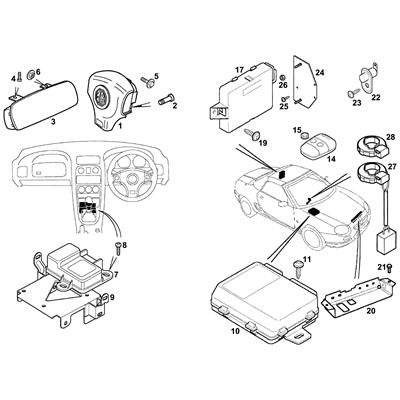

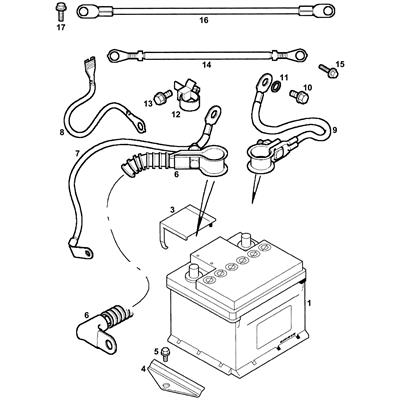

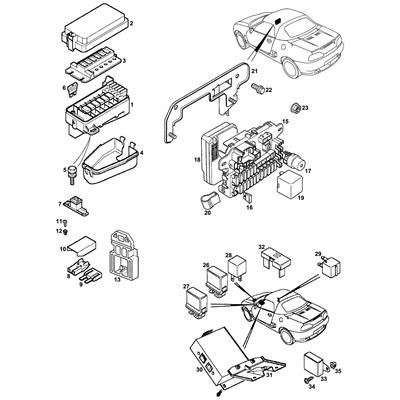

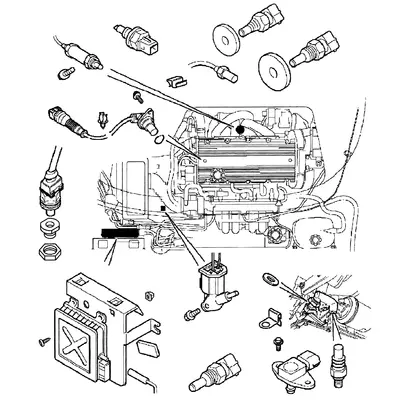

Battery & Cables covers the EPAS-specification battery and the non-EPAS-specification battery along with main cables and earth straps. Airbag & Alarm covers airbag ECUs across the production changes, alarm ECUs, and the associated sensors and switches. Engine Management covers MEMS ECUs, sensors, and the wiring for the management system. Fuse Box, Fuses & Relays covers the cabin and engine-bay fuse boxes and individual fuses and relays.

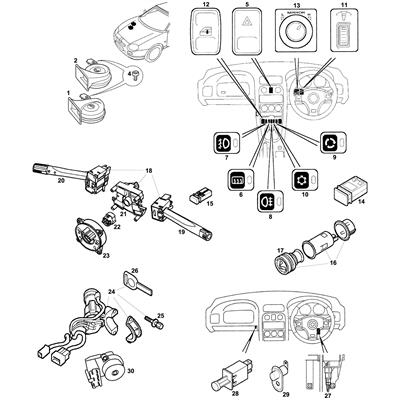

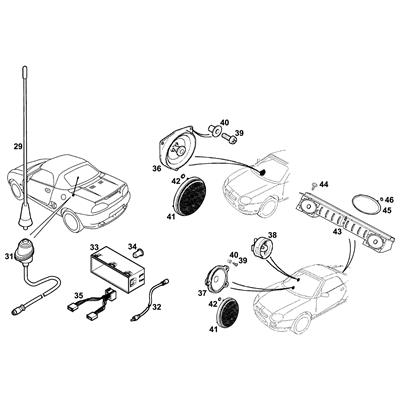

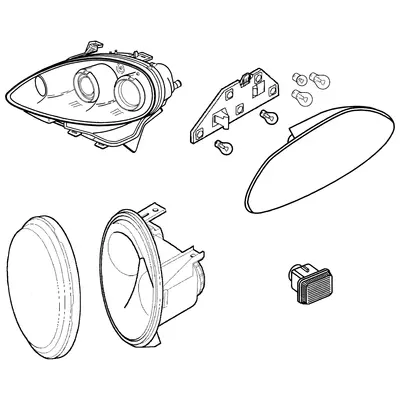

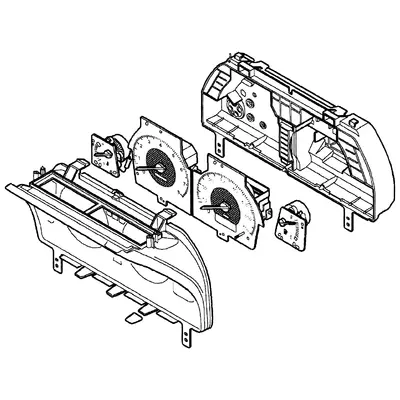

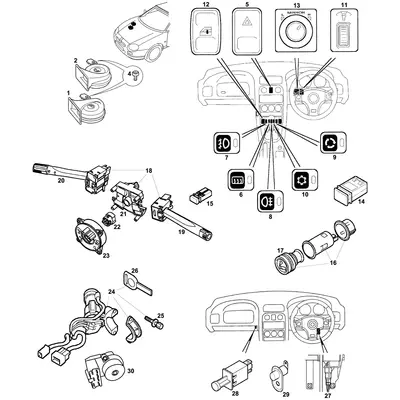

Gauges covers the cream-faced and silver-faced instrument clusters with specific calibrations for non-VVC, VVC, and automatic cars. Lighting covers headlamp, side light, indicator, rear lamp, and interior lighting items. Radio covers OE radio heads, speakers, and aerial components. Steering Lock, Switches & Horns covers the steering lock assembly, column switches, door switches, and horn assemblies.

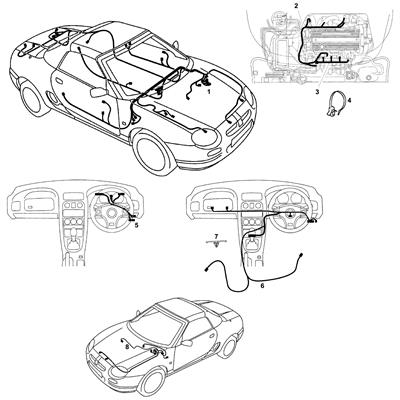

Wiring Looms covers the main body looms in MGF and MG TF specifications and the engine bay looms specific to each MEMS generation. Upgrades & Alternatives covers performance and reliability-focused electrical upgrades including uprated headlamps, LED bulbs, and battery isolators.
