The Classic Mini’s electrical system underwent significant changes across its 41-year production life. Early Minis used a positive earth electrical system with a dynamo for charging, while later cars switched to negative earth with an alternator. The changeover from positive to negative earth is one of the most fundamental identification points for electrical component selection, positive and negative earth components are not interchangeable and fitting the wrong polarity items will cause damage.
Charging

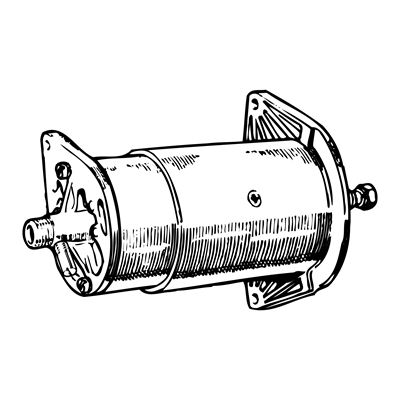

Early Minis were fitted with a Lucas dynamo, which was replaced by an alternator during production. Alternator types progressed through several Lucas units including the 16ACR, 17ACR, A115 and A127, with the MPi models from 1997 onwards fitted with a higher-output 65-amp A127 alternator to support the demands of the engine management system and electric cooling fan.
Starting

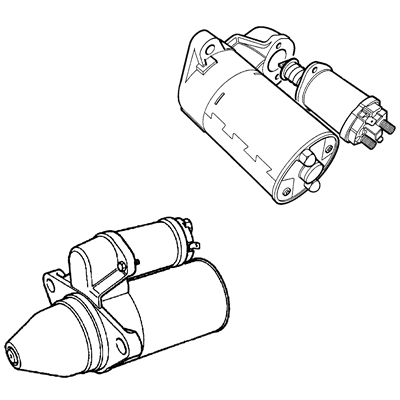

Starter motor types changed across production, progressing from inertia-type units to pre-engaged starters. The pre-engaged starter motor was introduced from 1985 onwards, requiring a starter relay.
When ordering a replacement starter motor, confirming whether your car uses an inertia or pre-engaged type is essential as the two are not directly interchangeable without changes to the wiring.
Ignition
The ignition system progressed from a conventional points and condenser arrangement with a mechanical distributor through to the fully electronic distributorless ignition of the MPi engine from 1997. Distributor types varied across engine sizes and production dates, with Lucas 45D, 59D and 64D distributors fitted at different points. The MPi system eliminated the distributor entirely, using direct electronic ignition controlled by the engine management ECU.
Lighting, Switches and Wiring

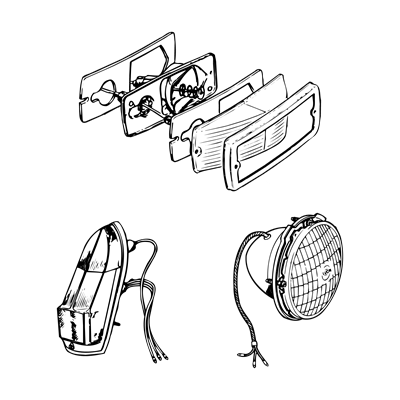

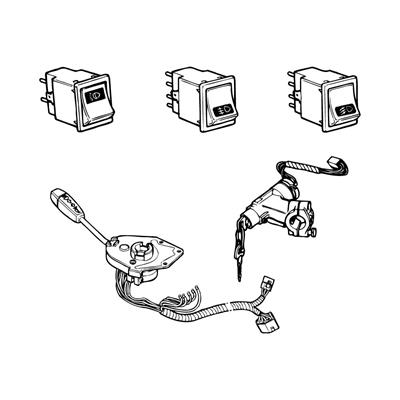

Headlamp specifications, indicator arrangements, interior lighting and switch types all changed across production. Wiring looms are specific to model, year and specification, particularly from 1990 onwards where Cooper, non-Cooper, carburettor, SPi, MPi, manual and automatic variants each required specific loom configurations. The MGOC Spares electrics range covers wiring looms, engine management looms, bulbs, lamp assemblies, switches and fuse boxes for all Classic Mini variants.
MGOC Spares Electrics Range

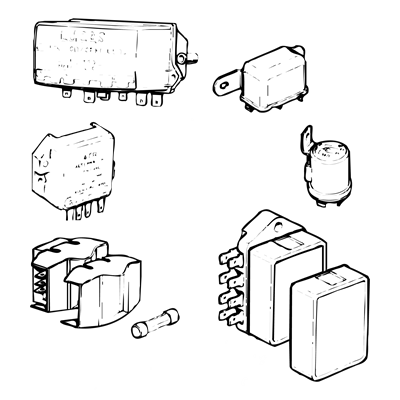

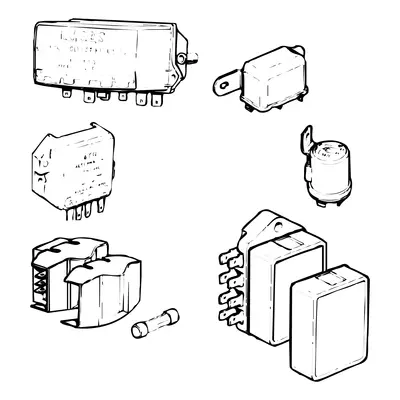

The MGOC Spares Classic Mini electrics range covers alternators, dynamos, starter motors, distributors, ignition coils, HT leads, spark plugs, headlamps, indicator units, rear lamp assemblies, interior lamps, switches, fuse boxes, relays, wiring looms, batteries and all associated wiring and fixings.
