The Classic Mini’s A-series engine uses a conventional water-cooled system comprising a radiator, water pump, thermostat and connecting hoses. The layout evolved significantly across production, and the changes directly affect which replacement components are correct for your car. The most fundamental distinction is between the side-mounted radiator used on carburettor and SPi models up to 1996, and the front-mounted radiator introduced with the MPi engine in 1997. These are entirely different systems requiring different radiators, hoses, fans and ancillary components.
Radiators

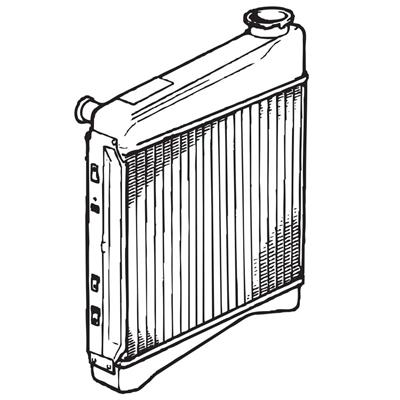

Carburettor and SPi Minis (up to 1996) use a side-mounted radiator positioned on the left-hand side of the engine bay. The MPi models from 1997 onwards moved to a front-mounted aluminium radiator sitting at the front of the engine bay, a change driven by the need to meet drive-by noise regulations. The front-mounted system also introduced an electric cooling fan in place of the engine-driven mechanical fan used on earlier cars.
When ordering a replacement radiator, confirming whether your car is carburettor, SPi or MPi specification is essential.
Water Pumps
The water pump is driven by the engine via the fan belt and its internal impeller circulates coolant through the engine block, cylinder head and radiator. Pump specifications differ across engine types and production periods. The MGOC Spares range covers water pumps for all small bore and 1275cc engine variants, including modern alloy-bodied pumps that replace the original cast iron units.
Cooling Hoses

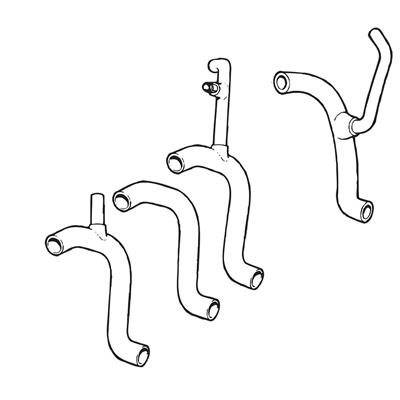

Hose configurations changed with each major revision to the cooling system layout. Carburettor, SPi and MPi models each require specific hose sets matched to their radiator position and ancillary arrangement. Replacing hoses as a set rather than individually is recommended, a cooling system is only as reliable as its weakest hose, and age-related deterioration typically affects all hoses equally.
Thermostats
Classic Mini thermostats are available in a range of temperature settings. The thermostat controls the coolant flow leaving the engine, remaining closed during warm-up to bring the engine to operating temperature quickly and opening progressively as the coolant reaches its rated temperature. A thermostat with a built-in jiggle valve is recommended for older engines, as this allows air and steam to pass rather than becoming trapped behind the thermostat during filling.
Coolant and Antifreeze
A mix of water and non-OAT (Organic Acid Technology) antifreeze at a ratio of between 33% and 50% is recommended for all Classic Mini engines. The primary purpose of antifreeze is not solely to prevent freezing but to provide anti-corrosion inhibitors that protect the internal passageways of the engine and radiator. OAT-type coolants, commonly found in modern cars, are not recommended for classic engines as some of the materials used in the A-series cooling system may suffer damage over time. Coolant should be renewed at the manufacturer’s recommended service interval.
For guidance on ethanol-blended fuels and their effect on running temperatures, see our blog Using Ethanol-Blended Petrol in Your Classic Car.
MGOC Spares Cooling Range

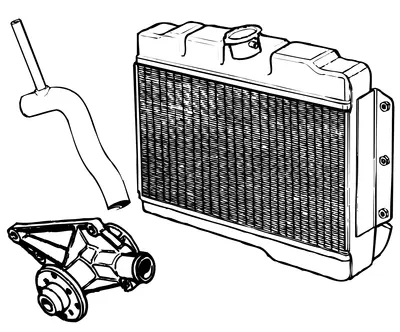

The MGOC Spares Classic Mini cooling range covers radiators for side-mounted and front-mounted applications, water pumps, thermostat housings, thermostats, cooling hose sets, individual hoses, hose clips, cooling fans, expansion tanks and coolant additives.
