The cooling system is arguably the single most important maintenance area on the MGF and MG TF. Unlike every other MG in the MGOC Spares catalogue, the MGF and TF have their engine mounted behind the seats and the radiator mounted at the front of the car. Coolant must therefore travel the full length of the vehicle, from the front radiator, through underfloor pipes beneath the cabin, to the engine at the rear, and back again. This extended coolant circuit has approximately twice the volume of a front-engined Rover saloon using the same K-series engine, and introduces vulnerabilities that do not exist on front-engined cars. Any restriction, airlock, or leak in this long circuit directly affects the engine's thermal management, and the cooling system's condition is one of the determining factors in whether the K-series head gasket remains reliable over the long term.
The Cooling System Architecture

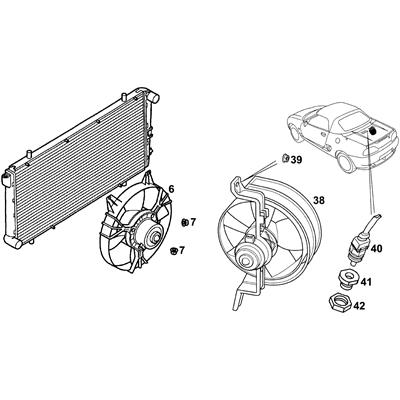

The MGF and TF cooling system is a bypass-type arrangement: when the engine is cold and the thermostat is closed, coolant still circulates around the engine and through the heater matrix via a bypass circuit, preventing hot spots in the cylinder head during warm-up. When the thermostat opens, the long loop to the front radiator comes into play, and heat is dissipated through the radiator's crossflow core. The radiator itself is a copper and brass crossflow design with moulded plastic end tanks, mounted in rubber bushes, the bottom located in the front body member and the top located in the bonnet locking platform. Twin electric cooling fans mounted behind the radiator provide airflow at low speeds and in traffic, switching on progressively as coolant temperature rises.
The system is semi-sealed, with a pressure cap on the expansion tank raising the coolant's effective boiling point above 100°C. Total cooling system capacity is approximately ten litres, which combined with the long coolant runs means a full service refill requires more coolant than an owner might expect, and careful bleeding is essential to remove airlocks from the high points of the long circuit.
Two Signature Preventive Upgrades

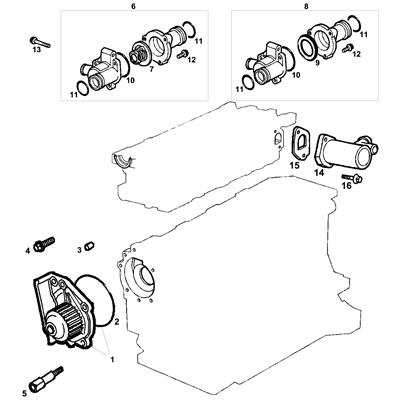

Two cooling system improvements made during MGF and TF production have become the defining preventive upgrades for owners of earlier cars. The Pressure Relief Thermostat (PRT) was introduced to the MG TF from January 2003 (intermittently) and September 2003 (full production). The PRT is not a simple thermostat replacement, it is a remote, sealed assembly mounted in the underfloor hose run, with the original engine-mounted thermostat housing retained but with a restricting flange in place of its thermostat. The PRT softens the thermal shock cycle that occurs when cold coolant from the front-mounted radiator reaches the hot engine as the thermostat opens, an identified contributor to head gasket stress on earlier cars.
PRT retro-fitment is one of the most widely-recommended preventive upgrades for MGF and pre-2003 TF owners. The low-coolant warning system was not fitted on early MGFs; it was only added to production cars from 2005. Given the K-series engine's sensitivity to coolant loss in the mid-engine installation, where a small leak can drain the long circuit faster than an owner might notice, and where the driver's first indication is often the temperature gauge rising, a coolant level sensor retrofit kit is one of the most important additions for any MGF or earlier TF not already fitted with one. The sensor fits in the expansion tank and triggers a dashboard warning before coolant drops to a level that risks head gasket damage.
Stainless Steel Underfloor Pipe Upgrade
The original factory-fitted underfloor coolant pipes are mild steel and are exposed to road spray, salt, and stones as they run the length of the car's underside. On any MGF or TF of significant age, these pipes corrode from the outside, and because the corrosion is out of sight beneath the car, the first sign is often a coolant leak developing at a pitted section. Stainless steel replacement pipes eliminate this corrosion path entirely and are effectively a fit-once solution. On any cooling system overhaul or head gasket work, replacing the mild steel underfloor pipes with stainless is widely considered a sound long-term investment, particularly on cars intended to remain in service for many more years.

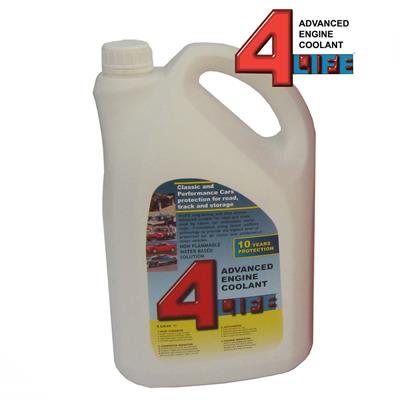

OAT Coolant Specification
The correct coolant specification for the MGF and MG TF K-series is Organic Acid Technology (OAT) long-life antifreeze, used at approximately 50% dilution with water for the roughly ten-litre system capacity. OAT coolants have a service life of several years longer than traditional IAT (blue/green) coolants and provide better aluminium engine protection.
