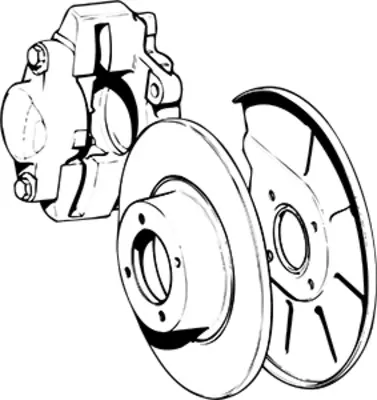

The majority of MGFs left the factory with 240mm ventilated front discs clamped by slider calipers and 240mm solid rear discs, the rear calipers incorporating the handbrake mechanism. This mainstream specification covers the MGF 1.8i, MGF 1.6i, MGF VVC (non-Trophy), MG TF 115, MG TF 120, and standard MG TF 135. These brakes are genuinely effective in the context of normal road use and are comparable to the braking provision on similar-sized sports cars of the era.
Uprated AP Racing Specification, Trophy 160, TF 160, and Optional Variants
The 2001 MGF Trophy 160 was a hard-edged limited edition focused on track-day performance, and its brake specification reflected that: much larger 304mm ventilated front discs clamped by bright red AP Racing four-piston calipers with bold MG branding on the caliper body. A notable quirk: ABS was simply not available on the 2001 Trophy 160 SE, the track-focused specification explicitly deleted ABS, unusually among production cars of the period. The MG TF 160 carried the AP Racing brake package forward as standard. The TF 160 is identifiable by its 16-inch 11-spoke alloy wheel design, which was specifically designed to clear the 304mm discs and AP Racing calipers.
This 11-spoke wheel design was also an extra-cost option on other MG TF variants as part of Sportspack 2, but the 'Sportspack 2' availability did not extend to the base MG TF 115 models except on specific LE (limited edition) specifications. So ordering brake parts depends not only on model variant but also on Sportspack fitment, which is verifiable by the wheel design and brake disc diameter. The uprated AP Racing brakes are substantially more effective than the mainstream slider-caliper specification, providing consistently stronger stopping, more even pad wear, and better resistance to fade on repeated hard use. The mainstream brakes are more than adequate for normal road use, but the AP Racing specification is simply more effective, and it shows in sustained hard driving and on track.
ABS Across the Range
Bosch 5.3 ABS was standard on the MG TF 120 (Stepspeed) and MG TF 160 throughout the entire MG TF production period. Other MG TF variants had ABS as an option until 2004, when ABS was standardised across all MG TF models. On the MGF, ABS was standard on VVC models from launch and optional on 1.8i and 1.6i variants, with the 2001 Trophy 160 SE being the notable exception where ABS was not available at all.
Weight Distribution and Brake Proportioning
The MGF and MG TF mid-engine layout produces an approximately 45% front / 55% rear weight distribution, the opposite bias to a conventional front-engined car. The brake system is proportioned to reflect this, with the rear brakes performing a greater share of the braking effort than on a front-engined design. One consequence worth noting: rear brake pad life on MGF and MG TF cars is often shorter relative to front pad life than owners used to front-engined cars might expect.
Five Child Pages

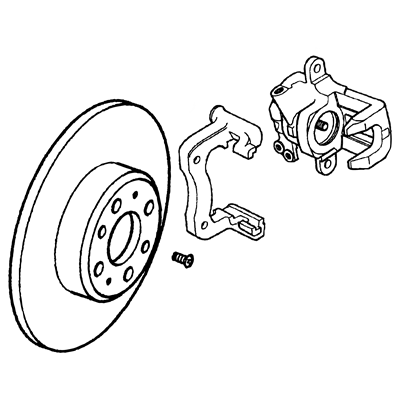

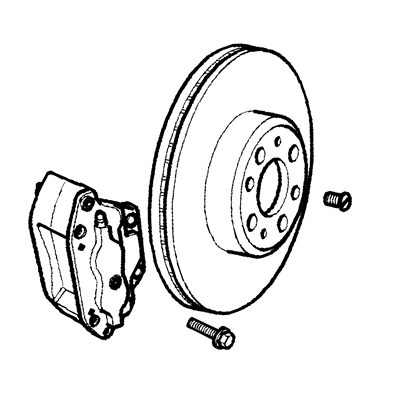

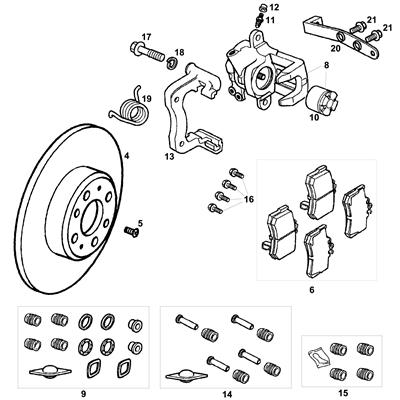

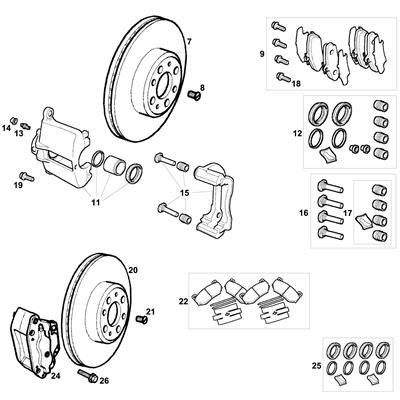

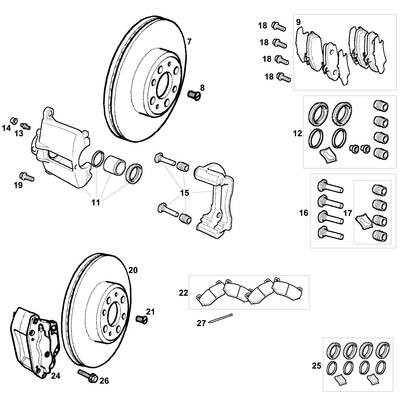

Front Brakes covers the front discs and pads in both 240mm mainstream and 304mm AP Racing specifications, the pin-slider caliper (mainstream) and four-piston opposed caliper (AP Racing), caliper carriers, caliper pin kits, and the associated hardware. Rear Brakes covers the rear discs, pads, rear caliper (including the integrated handbrake mechanism), caliper carriers, and associated hardware, common across most MGF and MG TF variants since the rear brake specification did not change between mainstream and uprated variants. Handbrake covers the handbrake cables, lever, operating mechanism, and the caliper-mounted handbrake lever components. The handbrake integrates with the rear caliper rather than using a separate drum mechanism.

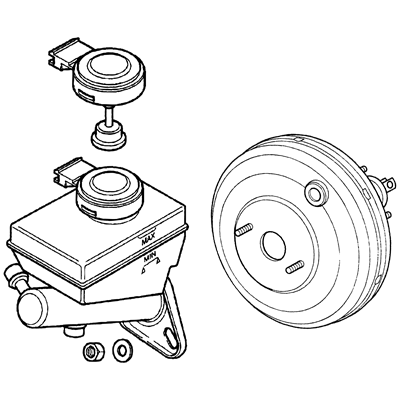

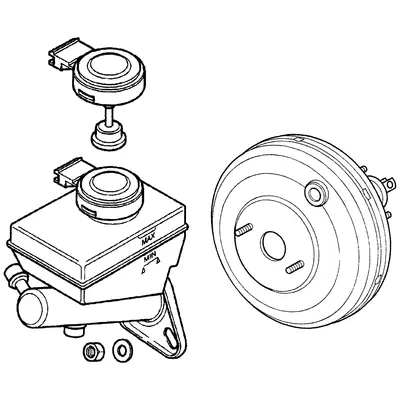

Hydraulics covers the brake master cylinder (multiple production variants), brake servo, brake pipes and unions, braided brake hose upgrades, ABS pump and sensors, and related hydraulic components. Production-change detail for master cylinder and servo variants is covered on the child page. Upgrades & Alternatives covers brake performance upgrades including AP Racing brake kits for retrofitting to non-Trophy/non-160 cars, braided brake hoses, uprated brake pads (standard, fast road, and track compounds), and competition brake components.
