The Rover K-series is an all-aluminium inline four-cylinder engine with a DOHC 16-valve head, used in every MGF and TF produced. Designed in the late 1980s as a lightweight, modern powerplant for the Rover 200 and 400 ranges, the K-series was adopted for the MGF in mid-mounted transverse form, making the MGF's engine bay one of the most distinctive in the MG lineage and creating specific service and component requirements that differ from the front-engined Rover Group applications of the same engine family. Two capacities were used across the production run. The 1,796cc unit (bore 80mm, stroke 89.3mm) was the core engine from launch in September 1995, offered in multi-point injection (MPi) form producing 120 PS (118 bhp) at 5,500 rpm and, from February 1996, in Variable Valve Control (VVC) form producing 145 PS (143 bhp) at 7,000 rpm.
To make full use of the VVC's upper-rev-range power advantage, the final drive ratio on VVC cars was lowered by 10 per cent compared with the standard 1.8i. The 1,588cc unit (bore 80mm, stroke 79mm) was introduced for the MGF 1.6i in spring 2001, producing 112 PS (111 bhp) at 5,500 rpm as an entry-level model aimed squarely at the Mazda MX-5 price point. All K-series engines in MGF and TF application have five main bearings, a 10.5:1 compression ratio, belt-driven camshafts, and multi-point fuel injection running on EN228 95 RON unleaded fuel.
Engine Variants and Identification

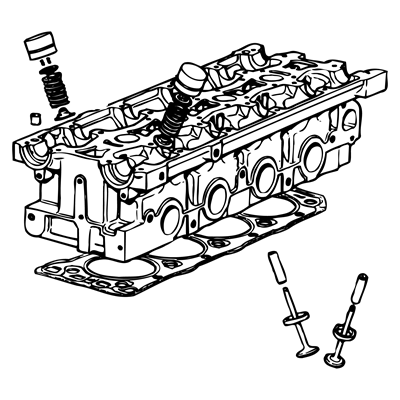

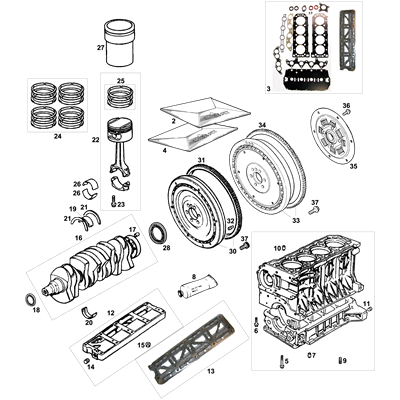

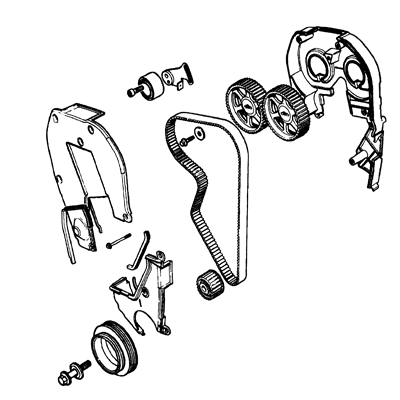

Engine identification is by engine number prefix: 18K4F for the 1.8 non-VVC, 18K4K for the 1.8 VVC, and 16K4F for the 1.6. The VVC head casting is fundamentally different from the MPi head, the VVC mechanism, which uses an eccentric disc system to vary inlet cam duration continuously from approximately 220 to 295 degrees, requires a different cam carrier, inlet camshaft, and VVC drive assembly at the rear of the engine driven by its own separate timing belt. VVC and non-VVC heads are not interchangeable. The 1.6 block, while sharing the same 80mm bore as the 1.8, has a shorter stroke and a different crankshaft, and is not an interchangeable unit.
The MGF Range at a Glance
Four distinct MGF engine specifications were offered across the 1995 to 2002 production run. The 1.8i (120 PS / 118 bhp) was the launch engine and remained the core model throughout. The 1.8i VVC (145 PS / 143 bhp) followed from February 1996 and offered substantially more top-end power from the same capacity. The 1.6i (112 PS / 111 bhp) arrived in spring 2001 as an entry-level variant with reduced specification, no central locking, no volumetric alarm, no radio, and simplified interior trim, offering better emissions and fuel economy than the 1.8-litre cars.
The Trophy 160 SE, also launched in spring 2001, raised the VVC engine's output to 160 PS (158 bhp) through revised camshafts and induction, and was built alongside standard MGF production from December 2000 to October 2001, with a total run of 1,430 cars.
The TF Engine Range and Power Increase
The MG TF launched in February 2002 with a four-model line-up using the same K-series engine family but with revised specifications that extracted more power from each variant. The TF 115 (1.6-litre) produced 116 PS (114 bhp) at 6,250 rpm. The TF 120 (1.8-litre with Stepspeed CVT) retained 120 PS (118 bhp). The TF 135 (1.8-litre) became the core model, achieving its 136 PS (134 bhp) at 6,750 rpm by combining TF 160-style inlet manifold and air induction with high-lift camshaft profiles, a route to meaningful additional power without the complexity or cost of the VVC mechanism.
The TF 160 (1.8 VVC) produced 160 PS (158 bhp) at 6,900 rpm, the same output as the MGF Trophy 160 from which it was derived.
Engine Management Progression
Engine management is by Rover MEMS (Modular Engine Management System), which controls both fuel injection and ignition. The MEMS version changed across production: MEMS 1.9 on early MGF 1.8i cars, MEMS 2J on MGF VVC models, and MEMS 3 from the 2000 Model Year facelift onwards and on all TF models. Each MEMS version has specific sensor, actuator, and wiring requirements, and ECU calibrations are model-specific, a TF 135 ECU map is not the same as an MGF 1.8i map despite both engines sharing the same block and head castings. The NAC-era TF from 2009 used an engine reworked to meet Euro-IV emissions standards, sometimes referred to as the N-series, though the engine architecture remains fundamentally K-series.
The Head Gasket Consideration
The K-series head gasket is the most widely discussed maintenance topic for the MGF and TF. The original elastomer head gasket was prone to failure, particularly in the mid-engine application where the long coolant runs between the rear-mounted engine and the front-mounted radiator make cooling system integrity critical.
